Description

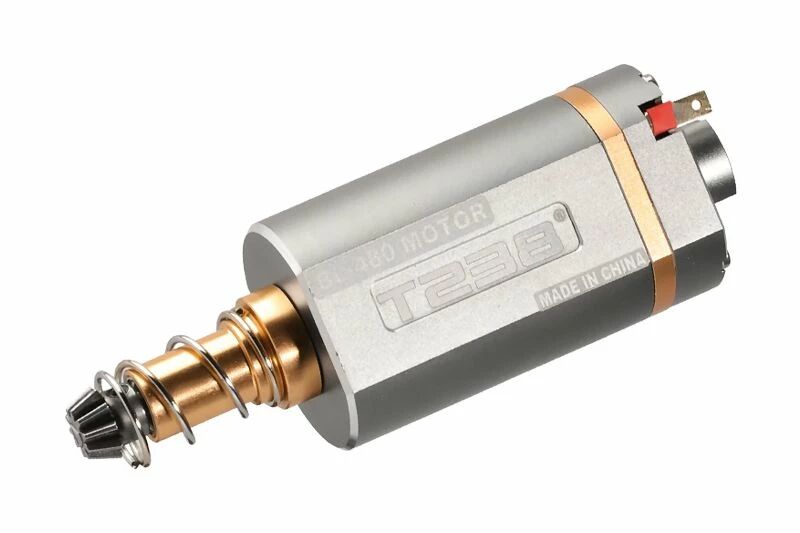

The 33k BL-480 short-axis - long-axis brushless motor for the T238 AEG replica, a more measured version for fine-tuning AEG behavior.
The T238 BL-480 33k is an AEG brushless motor designed for players who want to improve their replica with a modern, adjustable motor that is more controllable in its behavior. Available in short-axis and long-axis versions, it is designed for V2 / V3 gearbox-compatible configurations. In this 33,000 rpm version, the interest lies not only in cadence, but above all in the possibility of obtaining a more adjustable response thanks to the integrated potentiometer. This positioning may suit users looking for a more balanced compromise within the BL-480 range.
The technical base remains oriented towards a serious upgrade. This motor features a CNC aluminum body, pure copper winding, ultra-fine 0.15 mm silicon steel laminations, high-temperature neodymium magnets grade 45SH and a treated and reinforced alloy steel axle. Added to this are high-speed NMB bearings for 60000 rpm, and a 6-layer / 2 oz copper PCB. Maximum power of 380 W completes a package designed to withstand sustained use, with an internal architecture that's more than just a standard replacement motor.
The BL-480 33k is based on 3-phase sensorless brushless technology, allowing speed adjustment from 50% to 100% directly on the motor. This changes the product's appeal on an AEG in concrete terms: it becomes possible to fine-tune the shooting feel and adapt the replica's responsiveness more precisely without changing the motor reference. It also features protection against undervoltage, overcurrent, overheating and rotor lock-up, as well as an emergency stop after power failure and automatic detection of the number of battery cells. LiPo 2S / 3S compatible over a range from 6 to 12.6 V, this motor is aimed at users who want a more controllable brushless solution, particularly for set-ups where consistency and fine-tuning of speed are as important as pure responsiveness.
On the assembly side, this version is compatible with V2 / V3 gearboxes and with the DTU T238 ecosystem. The long-axis version is suitable for M4, M16, MP5, G3 and P90 platforms, while the short-axis version corresponds to the AK, G36 and AUG families and related models. XT60 and T-Dean connectors are recommended for the power supply.
Installation of this type of upgrade part requires technical knowledge, so please do not hesitate to contact our workshop for advice or installation assistance.
Frequently asked questions (FAQ)
- What is the 33k version of the BL-480 T238 brushless motor?
This version corresponds to a 33,000 rpm version.
It is part of the BL-480 range, with the same technical base, but with a different rotation level to the 39k and 48k versions.
- How do I choose between the long-axis and short-axis versions?
The choice depends on the replica and gearbox concerned.
The long-axis version is suitable for M4, M16, MP5, G3 and P90 platforms, while the short-axis version is intended for AK, G36 and AUG series, with verification of axis length before assembly.
- Does this 33k T238 brushless motor offer speed adjustment?
Yes, it incorporates a potentiometer allowing adjustment from 50% to 100%.
This allows you to adjust the motor's behavior without changing the reference.
- What power supplies is the BL-480 33k motor compatible with?
It accepts input voltages from 6 to 12.6 V, i.e. LiPo 2S and 3S batteries.
XT60 and T-Dean connectors are among the recommended solutions.
- What safety features are built into this AEG T238 motor?
The motor features protection against undervoltage, overcurrent, overheating and rotor lock.
It also features an emergency stop after a power failure and automatic detection of the number of battery cells.
- What technical features characterize the construction of this motor?
It is based on a CNC aluminum body, a pure copper winding, 0.15 mm ultra-fine silicon steel laminations and 45SH high-temperature neodymium magnets.
It also features high-speed NMB bearings for 60000 rpm, a 6-layer / 2 oz copper PCB and a maximum power rating of 380 W.
- For what type of upgrade is this 33k brushless motor relevant?
It is intended for upgrading an AEG replica with high cadence and speed control logic.
Product content
1 x Brushless motor 33k BL-480 short axis - long axis for AEG replica T238
1 x Screwdriver
Features
- Internal part
- Special features 33k BL-480 brushless motor
- Composition CNC aluminum
- Compatibility Gearbox V2 - V3 / DTU T238 series
- Axis type Long / Short
- RPM 33 000
- Brand T238
