Description

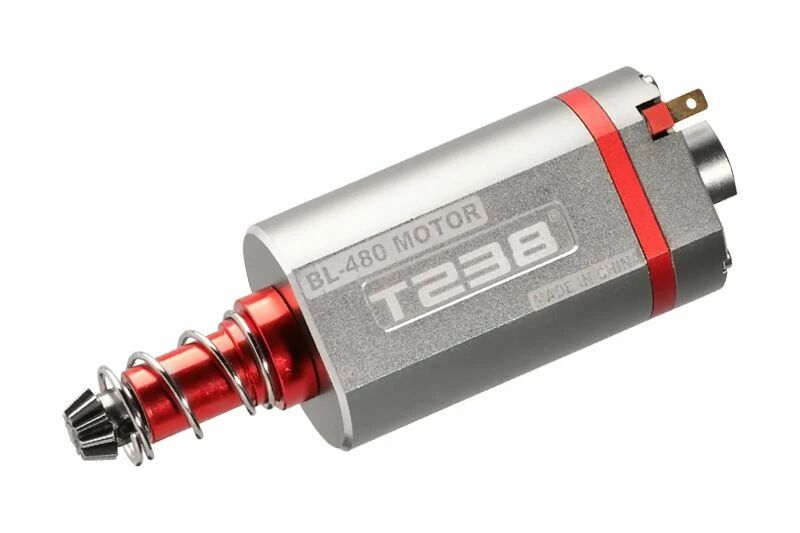

The 39k BL-480 short-axis - long-axis brushless motor for the AEG T238 replica, an adjustable motorization designed for demanding assemblies.
The 39k BL-480 T238 brushless motor is an AEG motor designed for users who want to upgrade their replica with a solution that's both adjustable and responsive. Available in short-axis or long-axis versions, it fits on V2 or V3 gearbox-compatible configurations. This 39,000 rpm version is well positioned for those looking for a high cadence while retaining a margin of adjustment thanks to the integrated potentiometer, without switching to the most extreme speed level of the BL-480 range.
The T238 features a meticulous construction, articulated around a CNC aluminum motor body, pure copper winding, ultra-fine 0.15 mm silicon steel laminations and grade 45SH high-temperature neodymium magnets. The assembly is completed by a treated and reinforced alloy steel axle, high-speed NMB bearings for 60000 rpm and a 6-layer / 2 oz copper PCB. This motor also boasts a maximum power rating of 380 W. These elements give the BL-480 39k a serious technical basis for a heavy-duty motor upgrade, with attention paid to mechanical stability and the performance of internal components.
Motor operation is based on a 3-phase sensorless brushless architecture, with speed adjustment from 50% to 100% directly on the motor. This adjustment makes it possible to better adapt the replica's behavior to the desired role or playing constraints, which is of real interest on multi-purpose platforms. The data sheet also mentions several built-in safety features, including protection against undervoltage, overcurrent, overheating and rotor lock-up, as well as an emergency stop after power failure and automatic detection of the number of battery cells. The motor accepts 2S / 3S LiPo power supplies from 6 to 12.6 V, giving it a wide range of use in compatible assemblies.
In terms of integration, this motor is compatible with V2 / V3 gearboxes and with the DTU T238 series. The long-axis version is designed for replica families such as M4, M16, MP5, G3 or P90, while the short-axis version is intended for AK, G36 and AUG series. XT60 and T-Dean connectors are recommended.
Installation of this type of upgrade part requires technical knowledge, so please do not hesitate to contact our workshop for advice or installation assistance.
Frequently asked questions (FAQ)
- What's the main difference between the BL-480 39k T238 brushless motor and the other versions in the range?
The key difference of this version is its advertised speed of 39,000 rpm.
This places it on a BL-480 configuration still geared to responsiveness and cadence, with a level of rotation distinct from the other versions in the range.
- What's the difference between short and long axis for this BL-480 brushless motor?
The difference lies in compatibility.
The long-axis version is suitable for M4, M16, MP5, G3 and P90 platforms, while the short-axis version is aimed at AK, G36 and AUG series.
- Can I adjust the behavior of the 39k T238 brushless motor?
Yes, the motor incorporates a potentiometer for speed adjustment from 50% to 100%.
This makes it possible to fine-tune the replica's response to suit the intended use.
- What batteries does the AEG T238 motor run on?
It is designed for a 2S to 3S LiPo supply, with an input voltage of 6 to 12.6 V.
The brand recommends XT60 or T-Dean connectors.
- Does this motor feature electronic safety devices?
Yes, it features protection against undervoltage, overcurrent, overheating and rotor lock.
It also features an emergency stop after a power failure and automatic detection of the number of battery cells.
- What type of upgrade is this 39k version designed for?
This motor is designed for an AEG upgrade, with a focus on high speed and speed control.
The BL-480 range is also presented by the brand for DMR, CQB and speedsoft applications.
- What technically distinguishes this T238 motor from a more conventional AEG motor?
It stands out for its brushless sensorless 3-phase design, CNC aluminum body, high-speed NMB bearings for 60000 rpm and maximum power rating of 380 W.
It also features dedicated technical components such as a pure copper winding, 0.15 mm laminations, 45SH neodymium magnets and a 6-layer / 2 oz copper PCB.
Product content
1 x 39k BL-480 brushless motor short axis - long axis for AEG T238 replica
1 x Screwdriver
Features
- Internal part
- Special features 39k BL-480 brushless motor
- Composition CNC aluminum
- Compatibility Gearbox V2 - V3 / DTU T238 series
- Axis type Long / Short
- RPM 39 000
- Brand T238
