Description

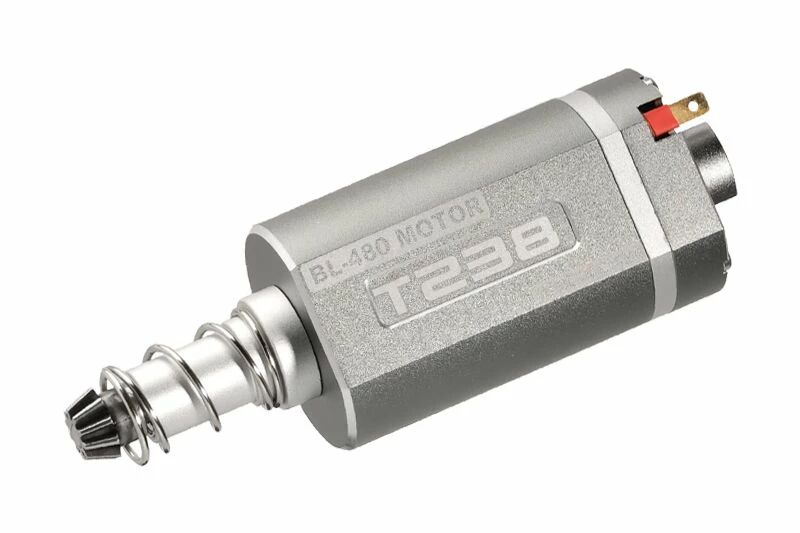

The 48k BL-480 short-axis - long-axis brushless motor for AEG T238 replicas, an adjustable upgrade solution for greater responsiveness
The T238 BL-480 is an AEG brushless motor designed for players looking for a responsive, high-speed, fine-tunable upgrade solution for electric replicas. Available in long-axis or short-axis versions, it is designed for gearbox V2 and V3 compatible platforms, depending on replica configuration. Its main attraction lies in the combination of 3-phase sensorless brushless technology, integrated speed control from 50 to 100% and several electronic protections, making it an appropriate basis for CQB, DMR or speedsoft assemblies, depending on the level of speed required.
The design of this BL-480 motor emphasizes components clearly geared to sustained use. It features a pure copper winding, ultra-thin 0.15 mm silicon steel laminations, high-temperature neodymium magnets grade 45SH, and a treated and reinforced alloy steel axle. T238 also announces NMB bearings rated at 60000 RPM, a 6-layer copper PCB in 2 oz and a maximum power rating of 380 W. This package aims to offer a motor more suited to demanding configurations, with an architecture designed to withstand high speeds while maintaining a stable operating base.
One of the real highlights of the T238 BL-480 is its built-in potentiometer, which allows operating speed to be adjusted from 50% to 100% without changing motors. This adjustment range gives you more scope to tailor the replica to a specific use, whether you're looking for a more controlled responseWhether you're looking for a more controlled response in CQB, a compromise between cadence and responsiveness in a multi-purpose configuration, or more responsive behavior in a speedsoft-oriented replica. The motor operates on an input voltage of 6 to 12.6 V, with automatic detection of the number of battery cells, making it compatible with LiPo 2S and 3S in the advertised range. Its speed of 48,000 rpm makes it a model for users who want a lively motor, but with an extra level of control thanks to tuning.
In terms of compatibility, the BL-480 is suitable for V2 / V3 gearboxes and the T238 DTU series. The long-axis version is suitable for M4, M16, MP5, G3, P90 and similar replicas, while the short-axis version is suitable for AK, G36, AUG and related platforms. For power supply, XT60 and T-Dean connectors are recommended.
Installation of this type of upgrade part requires technical knowledge, so please do not hesitate to contact our workshop for advice or installation assistance.
Frequently asked questions (FAQ)
- What's the difference between the long-axis and short-axis versions?
The long-axis version is designed for M4, M16, MP5, G3 or P90 platforms and similar models.
The short-axis version, on the other hand, is suitable for AK, G36, AUG series and similar configurations.
- Can I adjust the speed of the 48k BL-480 T238 brushless motor?
Yes, the motor incorporates a potentiometer for adjusting speed from 50% to 100%.
This allows you to fine-tune responsiveness and cadence to suit your replica configuration.
- Which batteries can be used with this T238 motor?
It is compatible with input voltages from 6 V to 12.6 V, i.e. LiPo 2S to 3S batteries.
XT60 and T-Dean connectors are recommended by the manufacturer.
- Does the T238 brushless motor incorporate electronic protection?
Yes, it features protection against undervoltage, overcurrent, overheating and rotor lock.
It also features automatic detection of the number of battery cells.
- What is the BL-480 48k motor designed for?
It is designed as a motor upgrade for AEG replicas, with a focus on responsiveness, high cadence and fine speed control.
The BL-480 range is designed for DMR, CQB and speedsoft applications.
- What technical features distinguish this T238 motor from a more conventional AEG motor?
This model stands out for its brushless sensorless 3-phase design, its NMB bearings rated at 60000 RPM, its integrated speed control and its claimed maximum power of 380 W.
It also features specific technical components such as a pure copper winding, 0.15 mm silicon steel laminations and 45SH high-temperature neodymium magnets.
Product content
1 x Brushless motor 48k BL-480 short axis - long axis for AEG T238 replica
1 x Screwdriver
Features
- Internal part
- Special features 48k BL-480 brushless motor
- Composition CNC aluminum
- Compatibility Gearbox V2 - V3 / DTU T238 series
- Axis type Long / Short
- RPM 48 000
- Brand T238
