Description

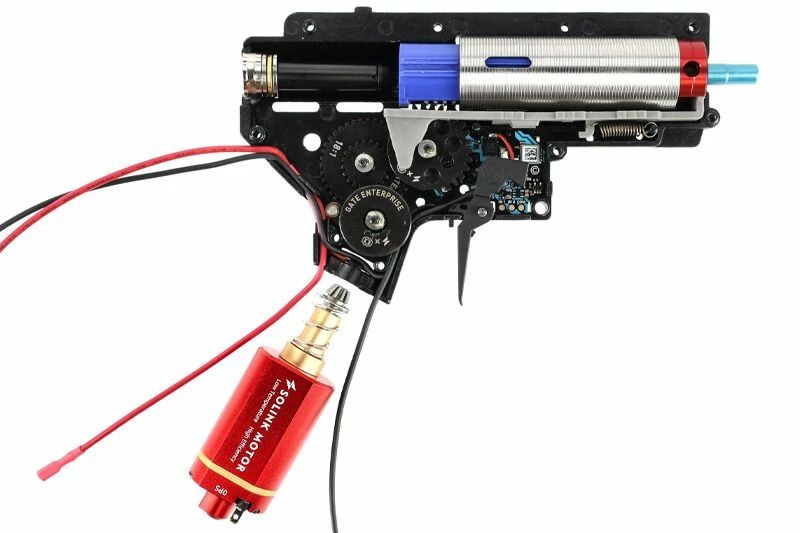

This full upgrade FPS Brushless OPS-Factory gearbox includes
In the 18:1 version:
- DMR-type gearbox
- Gearbox V2 Skeleton Aether CNC Specna Arms shell
- 18:1 EON GATE CNC gears
- Lite PLUS 35K brushless motor short axis - long axis for AEG SOLINK Long Axis replica
- Mosfet ASTER II EXPERT GEN 2 for Gearbox V2 AEG and HPA with GATE trigger Rear wiring
- FPS stainless steel cylinder 301 - 400 mm
- Cylinder head V2 60° FPS Softair
- Nozzle M4 Aluminium FPS Softair
- Tappet Plate technopolymer for gearbox V2 FPS Softair
- Gearbox V2 FPS Softair spring kit
- Piston 14 teeth metal CNC Specna Arms
- Piston head in ergal with lightened anti-vacuum bearing
- 8 mm low-profile steel bushings
- Spring guide with ERGAL bearing
- Anti-return (CNC)
In 13:1 version:
- Gearbox type Assaut Speed
- Gearbox V2 Skeleton Aether CNC Specna Arms shell
- 13:1 EON GATE CNC gears
- Lite PLUS 35K short-axis - long-axis brushless motor for AEG SOLINK Long Axis replica
- Mosfet ASTER II EXPERT GEN 2 for Gearbox V2 AEG and HPA with GATE trigger Rear wiring
- FPS stainless steel cylinder 251 - 300 mm
- Cylinder head V2 60° FPS Softair
- Nozzle M4 Aluminium FPS Softair
- Tappet Plate technopolymer for gearbox V2 FPS Softair
- Gearbox V2 FPS Softair spring kit
- Piston 14 teeth metal CNC Specna Arms
- Piston head in ergal with lightened anti-vacuum bearing
- 8 mm low-profile steel bushings
- Spring guide with ERGAL bearing
- Anti-return (CNC)
Please note that installation of this gearbox may require adjustment or replacement of the hop-up chamber on some models.
You will benefit from a 24-month OPS-store warranty on all parts. It does not cover any opening or modification made by a third party outside OPS-store.
The Gearbox is wired in DEAN. Internal lubrication of the gearbox will be carried out at the time of each assembly.
Frequently asked questions (FAQ)
- Is this gearbox compatible with all AEG V2 replicas?
It is designed for AEG platforms with V2 gearboxes, but depending on the model, installation may require adjustments. In some cases, changing the Hop-Up chamber may also be necessary to ensure optimal operation.
- What's the difference between the DMR version and the Assaut Speed version?
The DMR version is designed for range, stability and semi-accurate shooting configurations. The Assaut Speed version is more suited to more dynamic replicas, with a greater emphasis on responsiveness and cadence.
- Is the gearbox ready for installation?
Yes, it is delivered assembled and prepared, but fitting it in a replica may require adjustments depending on the compatibility of the body, Hop-Up chamber and other parts present in the replica.
- Is the gearbox wired in Dean?
Yes, this gearbox is wired with Dean connectors, offering better conductivity and a more reliable connection than conventional Mini Tamiya connectors.
- Is grease applied before assembly?
Yes, the gearbox is greased internally each time it is assembled, to ensure smooth, long-lasting operation.
- Is the gearbox fitted with a brushless motor?
Yes, it features a SOLINK Lite PLUS 35K brushless motor, providing excellent responsiveness, greater efficiency and less wear than a standard motor.
- Is the ASTER II Expert Gen 2 MOSFET included?
Yes, the gearbox is equipped with an ASTER II Expert Gen 2 GATE MOSFET, enabling advanced electronic management, better protection of the replica and precise adjustment to the player's preferences.
- What warranty is offered on this gearbox?
You benefit from a 24-month OPS-store warranty on all parts. This warranty does not cover openings, modifications or interventions carried out by a third party outside OPS-store.
- Can I open or modify the gearbox myself?
Technically yes, but any opening or modification carried out outside OPS-store will invalidate the warranty. To maintain 24 months' coverage, we recommend that you take any work to the OPS Factory workshop.
- What type of player is this full upgrade gearbox for?
It's aimed at demanding players who want a reliable, modern, high-performance mechanical base, without having to start from scratch with a complete upgrade. It's the ideal solution for transforming an AEG replica into a more responsive, consistent and durable platform.
Product content
1 x Gearbox Full upgrade FPS Brushless OPS-Factory
