Alignmentor Full-Size 40x40 Acetech electronic target

Presentation videos of the Acetech Alignmentor Full-Size 40x40 electronic target

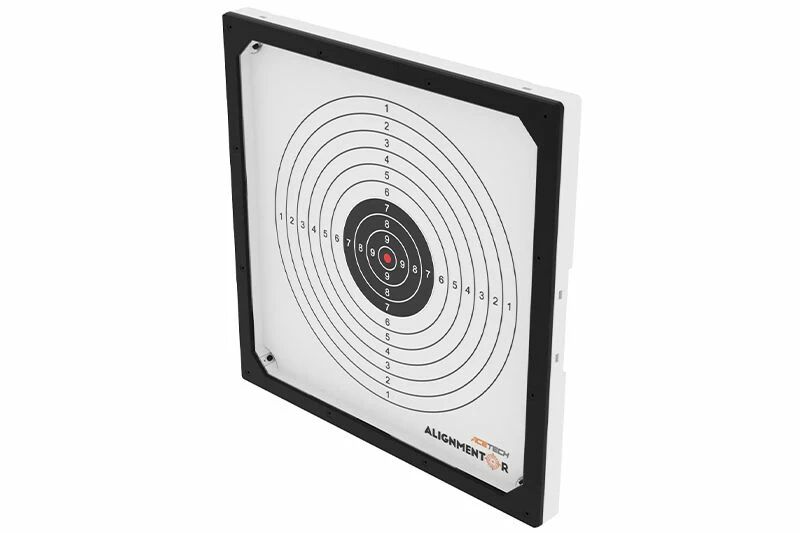

The Acetech Alignmentor Full-Size 40x40 electronic target, a precise application-driven zeroing tool.

The Acetech Alignmentor Full-Size is an intelligent electronic target designed for precision adjustment of optics and hop-up in airsoft. It is aimed at players and practitioners who want to objectify their zeroing and training sessions, replacing conventional visual estimation with instant digital feedback on a smartphone or tablet. Where a paper target requires you to move around to see the impacts, the Alignmentor transmits the exact location of each ball directly to the user's screen, via a Wi-Fi connection with a range of up to 50 meters.

Construction and materials

The frame of the Alignmentor Full-Size is made of polycarbonate, a material renowned for its rigidity and impact resistance. The front cover, meanwhile, is made of glass-fiber-reinforced nylon, providing durability for repeated use. The impact-receiving face is made of polyurethane (PU), a flexible material chosen to absorb balls while enabling precise detection of the point of contact. The unit's modular design makes it easy to transport and assemble on site, whether indoors or out.

Operation and technology

The Alignmentor communicates via Wi-Fi with the AceSoft mobile app, compatible with Android 10.0 or higher and iOS 16.0 or higher. As soon as a ball hits the target, the impact is located and displayed in real time on the app's interface. A text-to-speech feedback system announces results aloud, allowing you to stay in shooting position without consulting the screen between each sequence. The application also incorporates configurable training modes and keeps a session history, useful for tracking progress or comparing successive settings. The target features integrated lighting, making it usable in low-light conditions. Power is supplied by a Li-Polymer battery rechargeable via a USB Type-C connector.

Compatibility and conditions of use

The Alignmentor Full-Size is exclusively compatible with 6 mm plastic airsoft paintballs. The use of 8 mm balls, 4.5 mm pellets, steel balls or plated balls weighing 0.50 g or more is explicitly discouraged and may damage the target. A minimum shooting distance of 3 meters is required for correct operation. Beyond 2 Joules at close range, the risk of damage is not covered by the warranty: this target is designed for set-up under controlled conditions, not for absorbing high-powered shots. The Full-Size model differs from the Compact version in its 40x40 dimensions, offering a larger detection surface, suitable for long-distance settings up to 50 meters.

• What is the main use of the Acetech Alignmentor 40*40?

  The Acetech Alignmentor 40x40 is an intelligent electronic target designed for precise hop-up adjustment and zeroing of aiming optics. Thanks to the AceSoft mobile application, it instantly displays the exact location of each impact on a smartphone or tablet, facilitating adjustments without interruption.

• How does this smart target's connectivity work?

  This target uses a Wi-Fi connection offering a communication range of up to 50 meters, which is ideal for long-distance precision adjustments. It is compatible with Android 10.0 (or higher) and iOS 16.0 (or higher), and features real-time voice feedback to announce scores or shot positions.

• What ammunition is compatible with Acetech Alignmentor?

  The device is exclusively compatible with 6 mm plastic airsoft pellets. The use of steel pellets, 4.5 mm pellets, 8 mm pellets or heavy plated pellets weighing 0.50 g or more is strictly forbidden, to avoid damaging the detection surface.

• What materials are used in the manufacture of this target?

  The structure of the Acetech Alignmentor 40x40 is made up of a polycarbonate frame and a front cover in glass-fiber-reinforced nylon to ensure robustness. The face of the target is made of polyurethane (PU), a special material that enables electronic impact detection while withstanding repeated shots.

• How is the device powered and recharged?

  The target has a built-in Li-Polymer battery, enabling wireless use in the field. Recharging is simply carried out via a standard USB Type-C cable, a copy of which is supplied in the box.

• What does the Acetech Alignmentor 40x40 package contain?

  The package includes the full-size target (40x40), a sighting module (Sight), an AceHerald USB dongle, a Type-C charging cable and a complete mounting kit including L-brackets, suspension rings and screws. A user manual and adjustment tools, such as a hex wrench, are also included to facilitate installation.

• What kind of drives can be produced with this system?

  As well as simply adjusting the optics, the dedicated application lets you configure different training modes and consult the history of your shooting sessions. The target is illuminated, so it can be used both indoors and outdoors, with a recommended minimum shooting distance of 3 meters.

1 x Target Alignmentor
1 x Sight Module
1 x AceHerald USB key
1 x Type-C charging cable
2 x L-Shaped brackets
1 x Pin (frequency adjustment tool)
2 x Hanging rings
4 x M5x8 screws
4 x M4x20 screws
4 x Wood screws
1 x Hexagonal key M2.5
1 x User manual

• Automated target system
• Brand ACETECH
• Model Alignmentor Full-Size 40x40 electronic target
• Materials Polycarbonate / Fiberglass-reinforced nylon / Polyurethane
• Power supply Li-Polymer battery rechargeable via USB Type-C connector
• LED panel dimensions 357 x 357 mm
• Target dimensions Effective area: 357 x 357 mm / Inner target: 300 x 300 mm
