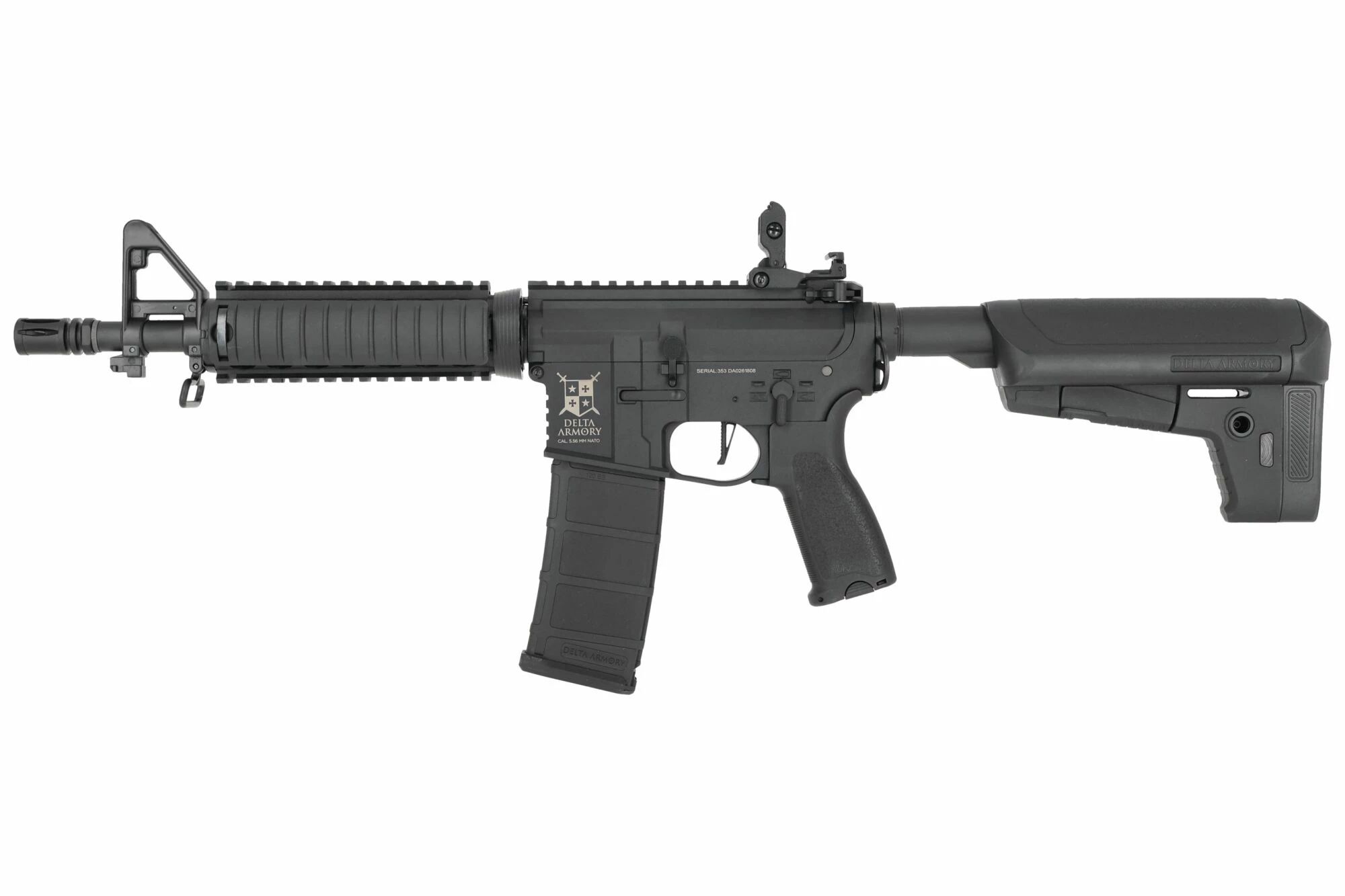

AR15 CQB-R CHARLIE AEG Replica DELTA ARMORY

The Delta Armory AEG AR15 CQB-R CHARLIE replica, a CQB platform built to last and evolve

The Delta Armory AEG AR15 CQB-R CHARLIE replica is an electric M4-type replica with a short barrel, designed for close-quarters combat both indoors and outdoors. It is aimed at players new to airsoft as well as experienced players looking for a solid, ready-to-use base that can grow with them. What sets this replica apart at its price point is the attention paid to internal components and ease of maintenance, with several technical solutions usually reserved for higher-end ranges.

An internal build focused on robustness and longevity

The version 2 gearbox is metallique and equipped with reinforced gears and 7 mm metal bearings. The SHS piston features 14 metal teeth, a choice that directly strengthens wear resistance against power upgrades. The gearbox is also rated for springs up to M120-M130, leaving significant room for progression for those wishing to adapt the power output to their playing field.

The trigger is CNC-type, a design usually associated with high-end replicas, and its integration on this platform contributes to a sharper, more precise response with every pull. The brass inner barrel has a 6.03 mm diameter, a value that promotes precise guidance for BBs weighing 0.20 g to 0.28 g. The adjustable rotary hop-up makes it easy to fine-tune the backspin effect according to the weight of BBs used.

The QRS gen. 2 system: simplified maintenance as a key feature

One of the most practical advantages of this replica is the QRS gen. 2 (Quick Release Spring) system. It allows the spring to be changed without disassembling the replica, radically simplifying maintenance operations and power adjustments. For a player who moves between different game types or wants to stay within the power limits imposed by a site, this feature represents a real time-saver and avoids delicate handling.

In the same spirit, the B5-type pistol grip integrates a Quick Motor Change system, accessible without complex tooling. These two features position the CQB-R CHARLIE as a practicality-oriented replica, both for the independent user and for a technician.

Ergonomics, accessories and field autonomy

The replica body is made of ABS polymer, and the outer barrel is metallique. The length is adjustable thanks to a retractable stock, allowing the replica to vary between approximately 700 mm and 785 mm depending on the selected position. The buffer tube houses the battery, with rear wiring and a Mini Tamiya connector. The stock is designed to accommodate high-capacity batteries, which is a notable advantage over other replicas in the same price range.

The 22 mm upper Picatinny rail runs the full length of the top cover and can accommodate optics, red dots or any other compatible accessory. A fixed metallique front sight is installed at the front, and an adjustable rear sight is mounted on the upper rail. The barrel tip is threaded 14 mm counter-clockwise (CCW), allowing the installation of a suppressor or tracer compatible with this standard thread pitch. A bilateral metallique sling ring is integrated between the body and the stock, enabling a sling to be attached without any additional accessory. Each replica carries a unique engraved serial number.

Regarding power, the replica operates with a 9.6 V NiMH battery with a Mini Tamiya connector.

• What items are included in the box of the Delta Armory AR15 CQB-R CHARLIE AEG replica?

  The pack includes the replica, a 120-bbs DMAG Mid-Cap magazine, a front tactical grip and two rail dust covers. It also contains a 9.6V 1100mAh NiMH battery along with a battery charger featuring an LED indicator and automatic cut-off.

• What battery and connector type are recommended to operate this model?

  The replica uses rear wiring located in the buffer tube with a Mini Tamiya connector, compatible with the included 9.6V NiMH battery.

• How is the spring changed on this replica?

  This model integrates the QRS gen. 2 quick-change spring system, which allows the spring to be replaced without fully disassembling the replica. Its reinforced gearbox supports spring configurations up to M120 or M130.

• What materials make up the Delta Armory AR15 CQB-R CHARLIE AEG replica?

  It is built with a durable ABS polymer body and a metallic outer barrel. The internals feature a metallic gearbox, 7mm metallic bearings, reinforced gears and an SHS piston with 14 metallic teeth.

• What thread type is fitted at the muzzle to attach an accessory?

  The barrel features a standard 14mm counter-clockwise (CCW) thread. This thread allows easy installation of a suppressor or any other compatible barrel accessory.

• What type of environment and player profile is this replica intended for?

  Its compact format naturally makes it suited for close-quarters battle (CQB) gameplay, both indoors and outdoors. Easy to handle while featuring reliable internals, it is suitable for beginners as well as experienced players.

• What types of BBs and magazines are compatible with this model?

  This replica works best with BBs weighing between 0.20g and 0.28g to optimise the performance of its rotary hop-up unit. It is fed by the included DMAG Mid-Cap magazine, compatible with the standard AR15 and M4 magazine format.

1 x Delta Armory AR15 CQB-R CHARLIE AEG Replica
1 x 120 BBs Mid-Cap Magazine (DMAG)
1 x Front Grip
1 x NiMH Battery
1 x Battery Charger

• Replicas
• Caliber 6 mm
• Propulsion AEG
• Battery slot Buffer tube (NiMH battery included and recommended)
• Connections Mini Tamiya
• Wiring Rear
• Shooting mode Safe / Semi-automatic / Automatic
• Energy 1.45 Joules
• Speed 395 FPS
• Minimum Length 710 mm
• Maximum Length 795 mm
• Weight 2525 g
• Internal barrel diameter 6,03 mm
• No screws 14 mm CCW
• Integrated tactical rail Yes
• Charger Mid-Cap 120 BBs
• How it works Adjustable Hop-Up
• Quick spring change Yes
• Gearbox Version Version 2
• Gears Reinforced metal
• Body Polymer
• Brand Delta Armory
