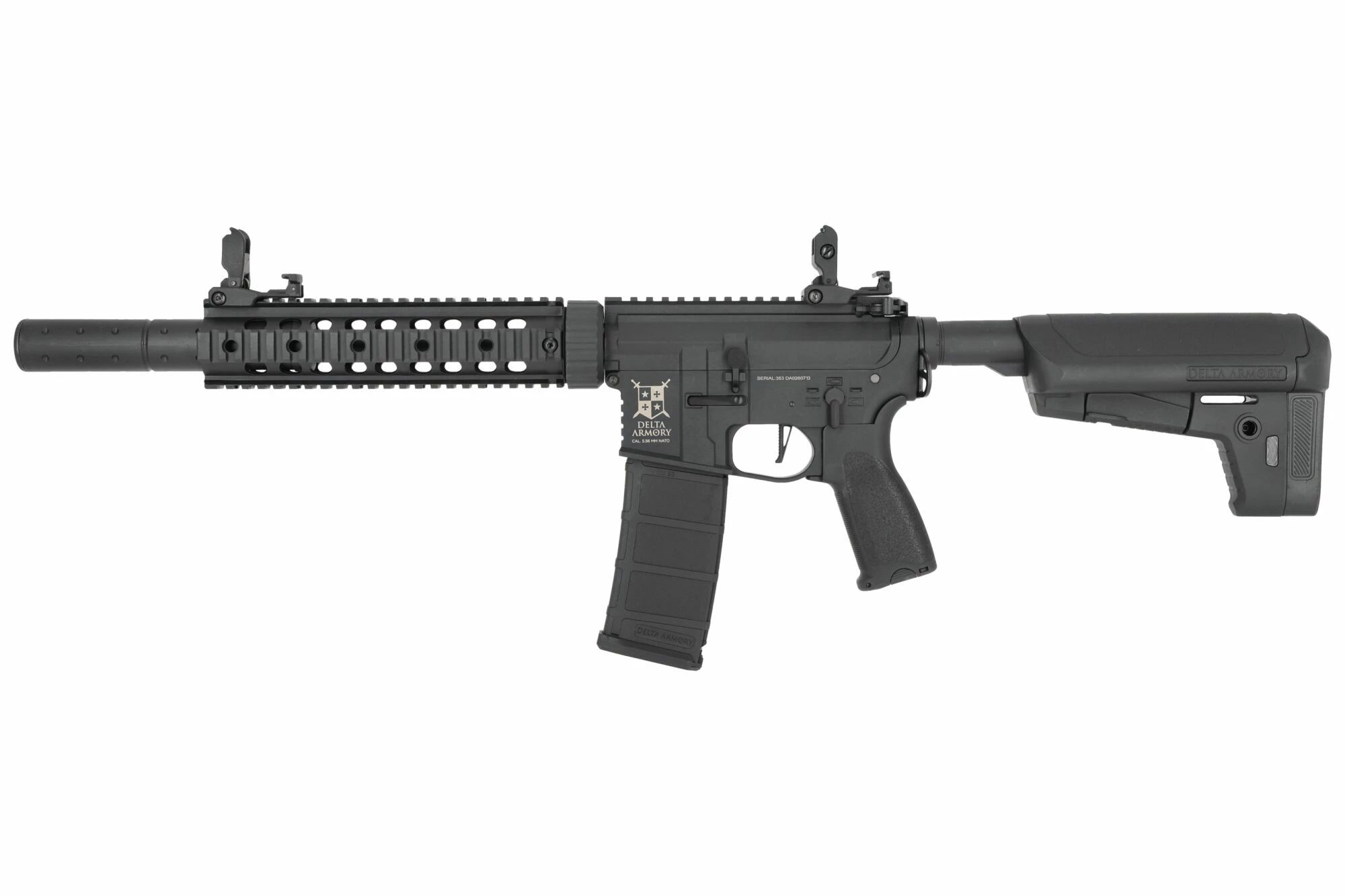

The AEG AR15 SilentOps 9" Charlie Delta Armory replica, a compact M4 platform designed to play from day one and evolve over time

The AEG AR15 SilentOps 9" Charlie replica by Delta Armory is an electric M4-type replica belonging to the Charlie series, the brand's structured entry-level segment. It targets both players discovering airsoft and experienced practitioners looking for a solid technical base to customize. What sets it apart straight out of the box is the presence of factory-installed replacement internal components, a quick-change spring system requiring no disassembly, and a Mini Tamiya connector,  features that are unusual at this price point.

Construction and materials: a balance designed for field handling

The replica body is made of polymer, keeping the weight low and comfortable to carry throughout a full day of gameplay. The outer barrel is metallic, as is the gearbox and the integrated bilateral CQD sling mounts positioned between the body and the stock. These rings, located on both sides, allow a sling to be attached without any additional accessory, regardless of the player's dominant side. The total length ranges from 785 to 865 mm depending on the adjustable stock position, making it a compact configuration suited to both CQB environments and open fields. A unique serial number is engraved on each unit.

Gearbox internals: aftermarket parts installed from the factory

The version 2 metallic gearbox comes equipped with internal components that go beyond what is typically found in a standard build. The SHS 14-tooth metal piston and the SHS CNC-type tappet plate are installed directly at the factory, with no modification required. The gears are metallic, the bearings measure 7 mm, and the precision alloy barrel is calibrated at 6.03 mm. The hop-up chamber is rotary and adjustable, allowing backspin effect to be tuned according to the BB weight used. BBs from 0.20 to 0.28 g are recommended.
The gearbox is compatible with M120 to M130 power springs in the long run. It should be noted that spring ratings vary between brands: an SHS M120 may correspond to a Delta Armory SP140 in terms of actual output power. The QRS gen. 2 (Quick-change Spring) system allows the spring to be changed without disassembling the replica, greatly simplifying power adjustments to comply with field regulations.

Ergonomics, accessories and connectors: an open platform

The stock provides easy access to the battery compartment and accommodates large-capacity formats. The replica is wired with a Mini Tamiya connector, making it directly compatible with 9.6 V NiMH batteries (included). Motor swaps can be performed quickly via the B5-type motor grip, without full disassembly of the replica.
The full-length top Picatinny rail runs along the entire upper surface of the replica and is complemented by 3 additional lower and side Picatinny rails, allowing optics, red dots, flashlights, or other accessories to be mounted. The front sight is adjustable and mounted on a Picatinny rail. The outer barrel is threaded 14 mm counter-clockwise / CCW, allowing the suppressor included with the replica to be removed and replaced with another muzzle accessory compatible with this thread pitch, such as a tracer unit or a replacement suppressor.

• What is included in the box of the AEG AR15 SilentOps 9" Charlie Delta Armory replica?

  The box contains the AR15 SilentOps 9" Charlie replica equipped with a suppressor, a 120-bbs DMAG Mid-Cap magazine, and a 9.6V 1100 mAh NiMH battery. A battery charger with automatic shut-off and LED indicator is also included for immediate use.

• What materials make up the AEG AR15 SilentOps 9" Charlie Delta Armory replica?

  The body of the replica is made from durable polymer to ensure lightness and maneuverability in the field. The gearbox, outer barrel, internal gears, and CQD sling mount are made from metal to provide excellent durability.

• What type of battery and connector does this AR15 SilentOps 9" Charlie replica use?

  The replica runs on the included 9.6V NiMH battery, which fits directly into the stock via a Mini Tamiya connector. The use of a LiPo battery is not recommended without prior wiring modification, such as the installation of a mosfet.

• How is the spring changed on this Delta Armory model?

  This model features the QRS gen. 2 (Quick-change Spring) system, which allows the spring to be replaced quickly without having to disassemble the replica from its body. This design makes it easy to adjust the power output to suit your field's requirements.

• Is it possible to mount optics or other sighting accessories?

  Yes, the replica features a 22mm top Picatinny rail ideal for mounting a scope or red dot sight. It also comes with an adjustable front sight mounted as standard on a Picatinny rail.

• What specific internal components are installed in the gearbox?

  The internals include an SHS piston with 14 full metal teeth, a CNC SHS delayer, and 7mm metal bushings. The replica also features a 6.03mm precision inner barrel paired with an adjustable rotary hop-up chamber.

• Can the stock suppressor be replaced with another muzzle accessory?

  Yes, the outer barrel has a standard 14mm CCW thread. You can attach other compatible muzzle accessories using this thread, such as a tracer unit or another suppressor.

1 x AEG AR15 SilentOps 9" Charlie Delta Armory replica
1 x Mid-Cap 120 BBs DMAG magazine
1 x NiMH 9.6V / 1100mAh battery
1 x Battery charger
1 x Instruction manual

• Replicas
• Caliber 6 mm
• Propulsion Electric
• Battery slot Stock (NiMH battery included and recommended)
• Connections Mini Tamiya
• Wiring Rear
• Shooting mode Semi-auto / Full-auto
• Speed 380 FPS
• Minimum Length 785 mm
• Maximum Length 865 mm
• Weight 2240 g
• Internal barrel diameter 6.03 mm
• No screws 14 mm CCW
• Integrated tactical rail Picatinny
• Charger Mid-Cap 120 BBs
• How it works Adjustable Hop-Up
• Quick spring change Yes
• Gearbox Version Version 2
• Gears Metal
• Body Polymer
• Brand Delta Armory
