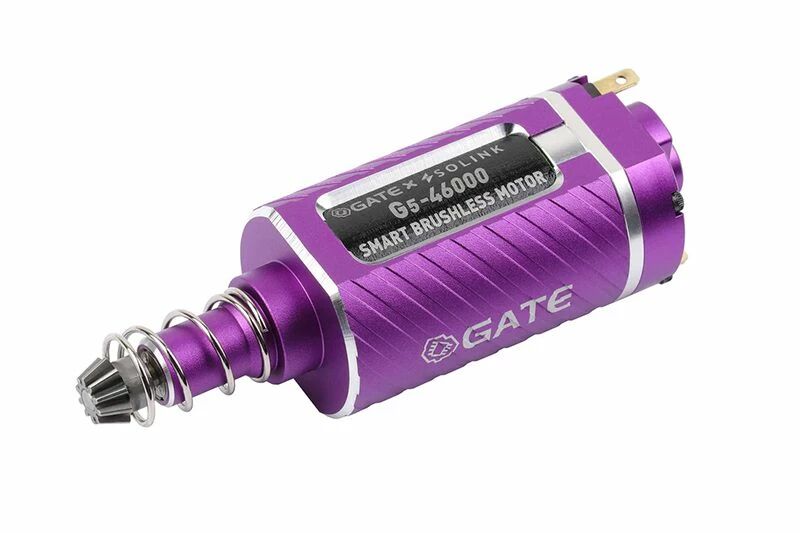

G5 Plus Smart Long Gearbox V2 Brushless Motor GATE

The G5 Plus Smart Long Gearbox V2 GATE Brushless Motor: A Smart, Programmable Motor for V2 Gearboxes

The G5 Plus Smart Long Gearbox V2 GATE brushless motor is a high-performance brushless electric motor designed specifically for AEG replicas equipped with a V2 gearbox. It's designed for players who want to optimize their build, with precise control over speed, torque, and responsiveness--all managed via a mobile app. Whereas a standard brush motor imposes fixed settings, the G5 Plus Smart allows for fully adjustable parameters in real time, without any additional tools.

An expanded performance range, controlled via the app

The most distinctive feature of the G5 Plus Smart Long is its native programmability via the GCS (Gate Control Station) app, available on Android, iOS, Windows PCs, and macOS, as well as on Wear OS- and watchOS-compatible smartwatches. When paired with a GATE TITAN II Bluetooth or GATE ASTER II Bluetooth MOSFET, the motor enters "Smart" mode: the rotational speed is then adjustable from 10,000 to 46,000 rpm, and the torque can be configured according to the build's requirements. At 11.1 V, the no-load speed reaches 45,800 rpm, maximum torque is 2,334 g/cm, and the maximum power measured by GATE is 519 W. These values are measured under specific conditions and should be interpreted based on the actual supply voltage used.
The motor supports a supply voltage range from 6 V to 16.8 V, making it compatible with both standard LiPo setups and high-voltage configurations. The GCS app also allows you to adjust settings during a match, directly from a smartphone, without interrupting gameplay and without connecting an external programmer. This flexibility is particularly useful for adapting the motor's behavior to changing gameplay conditions or different firing profiles.

A technical design engineered for reliability and smooth operation

The G5 Plus Smart Long's motor shaft is CNC-machined and integrated directly into the motor. The pinion is a Type D, standard in AEG setups. The motor connectors are reinforced to withstand the stresses associated with high inrush currents, particularly during high-power load peaks.
The motor incorporates a backstop mechanism, independent of the one in the gearbox, which GATE recommends keeping in place. This internal backstop contributes to smooth rotation, reduced operating noise, and precise pre-cocking. It can be added without replacing the gearbox's existing mechanical protections. The Long version shown here measures 88.5 x 29.5 x 25 mm and weighs 140 g, dimensions that are compatible with the long motor mounts on standard V2 gearboxes.

Smart Features and Compatibility with the GATE Ecosystem

Two distinct functions allow you to tailor the motor's behavior to your playing style. The Soft Start function reduces mechanical stress during startup by limiting the initial torque peak, which extends the lifespan of the gears. The Fast Start function, conversely, maximizes trigger responsiveness for minimal response time between pulling the trigger and the first BB being fired.
The G5 Plus Smart Long is also compatible in "Standard" mode (without advanced programming) with the GATE ASTER SE MOSFETs for V2, GATE ASTER SX for V2, and first-generation GATE TITAN V2. In this configuration, the motor operates like a conventional brushless motor, without access to RPM or torque settings via the GCS app. To take full advantage of all the smart features, pairing with a GATE TITAN II Bluetooth or a GATE ASTER II Bluetooth is required.

Efficiency and Power Consumption: Concrete Data for a Well-Controlled Build

At 11.1 V, the G5 Plus Smart Long achieves a maximum efficiency of 75.9%, reached at a speed of 40,987 RPM with a current of 24.9 A and a torque of 500 g/cm. This high efficiency translates to reduced battery consumption and lower heat generation compared to an equivalent brushed motor--two direct benefits for extended gaming sessions. The GCS app also includes DTC (Diagnostic Trouble Codes) reading and automatic motor detection, which simplifies diagnostics and monitoring of the motor's condition without the need for disassembly.

• Which replicas is the G5 Plus Smart Long Gearbox V2 GATE brushless motor compatible with?

  This long-shaft motor is designed for AEG replicas equipped with a V2 gearbox. It integrates seamlessly into the GATE ecosystem, offering full "Smart" compatibility with the TITAN II Bluetooth and ASTER II Bluetooth MOSFETs, while remaining compatible with the standard TITAN V2 and ASTER SE/SX versions.

• How do you adjust this motor's performance settings?

  Speed and torque are configured directly via the Gate Control Station (GCS) app on a smartphone (iOS/Android), PC, or smartwatch. You can adjust the rotational speed within a range of 10,000 to 46,000 rpm without any tools or an external programmer.

• What are the advantages of brushless technology on this model?

  The G5 Plus Smart Long Gearbox V2 GATE brushless motor offers high efficiency, which reduces battery consumption and heat generation. Its ultra-fast startup ensures an instant response when the trigger is released.

• What is the purpose of the backstop mechanism built into the motor?

  This integrated system works in conjunction with the gearbox's anti-recoil mechanism to improve the smoothness of firing cycles and reduce mechanical noise. It also allows for more precise pre-cocking control, resulting in a cleaner trigger pull.

• What mechanical protection features are included?

  This smart motor features a Soft Start function that reduces mechanical stress on the gears during startup to protect your gun's internal components. It also incorporates an advanced braking system and can communicate error codes via the GCS app in the event of a malfunction.

• What battery voltages does this motor support?

  The motor accepts a wide range of supply voltages from 6 V to 16.8 V. It is therefore perfectly suited for setups using 7.4 V or 11.1 V LiPo batteries, while optimizing discharge thanks to its built-in electronics.

• What materials is the G5 Plus Smart brushless motor made of?

  This model features a CNC-machined motor shaft for maximum precision and a robust D-type gear. The motor connectors are reinforced to ensure a reliable electrical connection, even at high firing rates.

1 x G5 Plus Smart Long Gearbox V2 Brushless Motor GATE

• Internal part
• Special features G5 Plus Smart Brushless Motor
• Axis type Long Axis
• Weight 210 g
• Length 88.5 mm
• RPM Adjustable from 10,000 to 46,000 revolutions per minute
• Height 25 mm
• Brand GATE
• Color Violet
