HP-R SYSTEM HPA System for V3 Gearbox STORM AIRSOFT

The STORM AIRSOFT HPA HP-R SYSTEM for the V3 Gearbox: A Turnkey Electropneumatic Conversion

The HPA HP-R SYSTEM from STORM AIRSOFT is an electropneumatic conversion kit designed to completely replace the internal mechanism of a V3 gearbox. It is intended for airsoft players who want to convert their AEG replica to HPA power while retaining both semi-automatic and full-auto firing modes. This type of conversion allows you to enjoy an electronically controlled system that offers more precise adjustments and is less prone to wear and tear on traditional moving parts.

An Electropneumatic System Designed for the V3 Gearbox

The HP-R SYSTEM is based on an electropneumatic architecture featuring a solenoid controlled by an FCU (Flight Control Unit) equipped with a digital display. This display provides direct access to settings without requiring external tools or complex adjustments. The kit is compatible exclusively with Version 3 gearboxes.

The system is powered by an 11.1V LiPo battery with T-Dean connectors. This is the only compatible battery type: no other technology or voltage should be used with this kit, in accordance with the manufacturer's specifications.

An adjustable nozzle to fit your setup

One of the distinctive technical features of this system is the ability to adjust the nozzle position using the shims included in the kit. This adjustment allows you to adapt the system to the replica's hop-up chamber, which is essential for ensuring proper BB feed and optimal air circuit sealing. The kit also includes a trigger board plate, a hose, a cable, and a trigger board washer, as well as installation and programming instructions to guide the user through every step of the integration process.

Who is this HPA system designed for?

The HP-R SYSTEM is an excellent choice for those seeking greater consistency in their shots, better control over their operating parameters, and a reduction in the mechanical wear inherent in traditional AEG systems. The inclusion of the FCU with a digital display offers a real advantage for intuitively configuring the system without needing a third-party app or equipment.

• Which replicas is the HPA HP-R SYSTEM for the STORM AIRSOFT V3 Gearbox compatible with?

  This kit is designed exclusively to replace the internal mechanism of a V3 gearbox. It is not compatible with V2 gearboxes, which have a specific version of their own.

• What battery should be used to power this HPA system?

  The system must be powered exclusively by an 11.1V LiPo battery equipped with a T-Dean connector.

• How do you adjust the nozzle length on this kit?

  The nozzle is adjusted manually using the four spacers included in the box. These spacers allow you to adjust the length to ensure an optimal seal with your hop-up unit.

• What are the advantages of the FCU integrated into the HP-R SYSTEM HPA system for the STORM AIRSOFT V3 Gearbox?

  The FCU (Flight Control Unit) features a digital display that greatly simplifies reading and modifying firing settings. It electronically controls the solenoid to provide consistent responsiveness and precise cycle management.

• What firing modes are available with this conversion?

  This electropneumatic system allows you to configure your airsoft gun for semi-automatic and full-auto modes. These modes are programmed directly through the electronic control unit.

• What's included in the package?

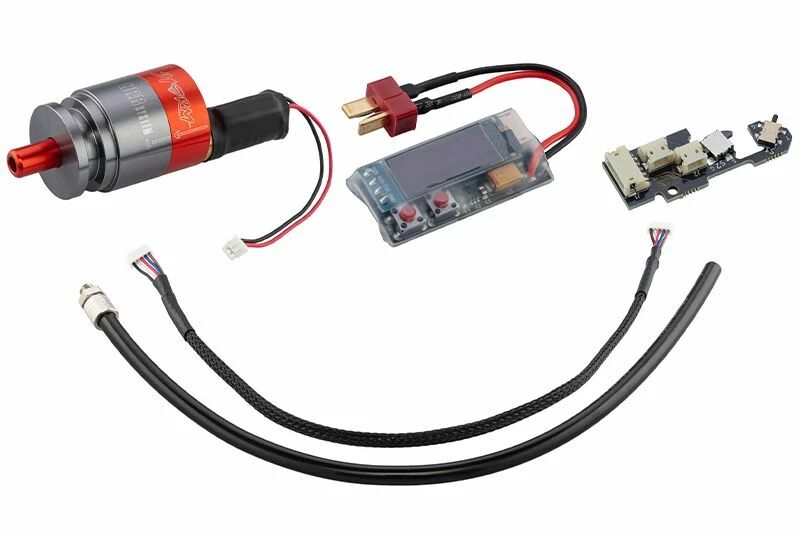

  The box includes the HPA system with its hose, the FCU with its wiring, a trigger board, four nozzle spacers, and a programming guide.

1 x HP-R SYSTEM HPA System for V3 Gearbox STORM AIRSOFT
4 x Nozzle shims
1 x Plate for trigger board
1 x Hose
1 x Cable
1 x Washer for trigger board
1 x Installation and Programming Guide

• HPA accessories
• Brand STORM
• Model HP-R SYSTEM Kit for V3 Gearbox
• Compatibility Gearbox V3
• Weight 130 g
• Power supply HPA / 11.1V LiPo battery only
• Shooting modes Semi-Auto / Full-Auto
