HPA conversion kit for AEG Gearbox V2 HP-R system Storm replica

Presentation video of the HP-R

An HPA kit designed to be accessible to all

The French brand STORM has designed a HPA conversion kit to convert your AEG airsoft replicas featuring a Gearbox V2 with rear wiring. They've designed it to be quick and easy to install for players with an AEG M4 or HK replica, for example.

The digital display supplied with the FCU makes setting up the replica much easier, offering a simple, uncluttered visual interface. This electropneumatic system also features a length-adjustable nozzle. To use the HP-R System, you'll need a LiPo 11.1v battery with T-Dean connector, to be purchased separately, to power the solenoid internally. This accessory will give you exceptional responsiveness and the ability to adjust the replica's power or rate of fire. To set up your HPA system you'll be able to access the following elements:
- PROFILE: Giving you access to the ability to set up two distinct profiles in the FCU
- Rate of Fire (ROF): Allows you to set the firing speed, measured in revolutions per second (RPS)
- SHOOTING MODE on first position: Varies between SEMI, BURST from 2 to 5 shots or BINARY trigger modes
- SHOOTING MODE on second position: Varies between FULL AUTO, SEMI, BURST from 2 to 5 shots or BINARY trigger modes
- NOZZLE DWELL: Determines how long the nozzle remains in the rearward position, allowing the loader to keep pace
- A-ST TIMEOUT: No need to modify this parameter according to the manual
- A-ST PULSE: No need to modify this parameter according to the manual either

This accessory is easy to maintain, since every 3000 rounds fired at most, you need to put a little silicone oil in the valve located on the air supply hose connected to the replica. The dematerialized user manual can be accessed via the QR code on the side of the box. This manual will give you access to all the information made available by STORM whether for product features, an installation guide, how to use the kit and how to maintain it.

This kit is perfect for upgrading your AEG replica to HPA without it being too expensive, and is much more accessible for neophytes to set up.

User manual (FR / EN)

• How do I maintain the HPA conversion kit for the AEG Gearbox V2 HP-R system?

  With a maximum shot of 3000 pellets, we recommend putting silicone in the valve on the air supply hose to the replica to keep the seals in good condition.

  It's only necessary for a small amount of silicone to make its way up to the HP-R motor.

  Then reconnect the air supply hose to your HPA cylinder and fire about 20 pellets.

• Which battery should I use with the HPA conversion kit for the AEG Gearbox V2 HP-R system?

  The HPA conversion kit for AEG Gearbox V2 HP-R system requires an 11.1V LiPo battery.

• How do I use the HPA conversion kit for the AEG Gearbox V2 HP-R system?

  Set the firing selector to SAFE mode, connect your pre-charged LiPo 11.1v battery, if the programming screen is connected to the kit it will display "SHOOTING", indicating that the FCU is ready to fire. connect your air hose to the kit and set the pressure between 70 and 140, put a magazine in the replica, set the selector to SEMI or FULL AUTO and pull the trigger to fire.

• How do I program my HPA conversion kit for the AEG Gearbox V2 HP-R system?

  First of all, for safety reasons, please remove your magazine, disconnect the air hose and let the air circulate to ensure that the replica is in a safe state.

  Once this has been done, hold down one of the two buttons on the FCU until the "PROGRAMMING" menu appears on the digital display.

• Does the HPA conversion kit for the AEG Gearbox V2 HP-R system have a battery safety feature?

  Yes, the FCU Storm analyzes the battery voltage, and if it falls below 6.5v, the motor goes into safety mode and prevents firing.

• What pressure range does the HPA conversion kit for AEG Gearbox V2 HP-R system replica operate in?

  The HPA conversion kit for the AEG Gearbox V2 HP-R system replica operates over a service range of 60 to 145 psi.

• What accessories are compatible with the HPA conversion kit for the AEG Gearbox V2 HP-R system?

  We recommend the use of a 6 mm US or EU macroflex coupler.

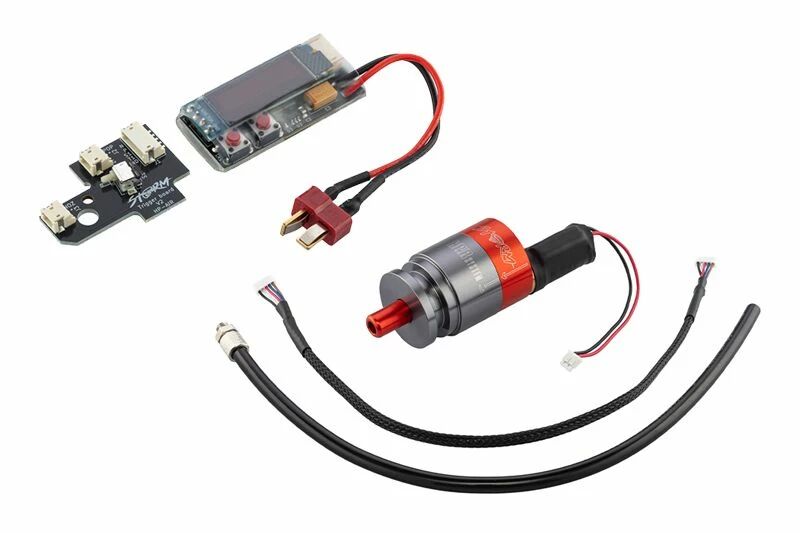

4 x Cales (rondelles) pour le nozzle
1 x Plate to trigger board
1 x FCU
1 x Flexible
1 x Câble (reliant le FCU et le trigger board)
1 x Rondelle pour trigger board

• HPA accessories
• Brand Storm
• Model HPA upgrade kit for AEG replica Gearbox V2 HP-R system
• Color Silver / Orange
• Compatibility Gearbox V2 rear wiring
• FCU Yes (supplied)
• FCU battery T-dean
• Power supply 11.1v LiPo battery (not included)
• Shooting modes Programmable : Semi, Burst 2-5 bbs, Binary, Full Auto
• Firing rate 1 to 40 bbs per second depending on settings
• Operating pressure 60 - 145 psi
