INFERNO XTS V2 HPA Kit for M4 AEG WOLVERINE AIRSOFT

Video presentation of the INFERNO XTS V2 HPA kit for the Wolverine Airsoft M4 AEG

The HPA INFERNO XTS V2 kit for the Wolverine Airsoft M4 AEG: a precise, Bluetooth-controlled HPA conversion

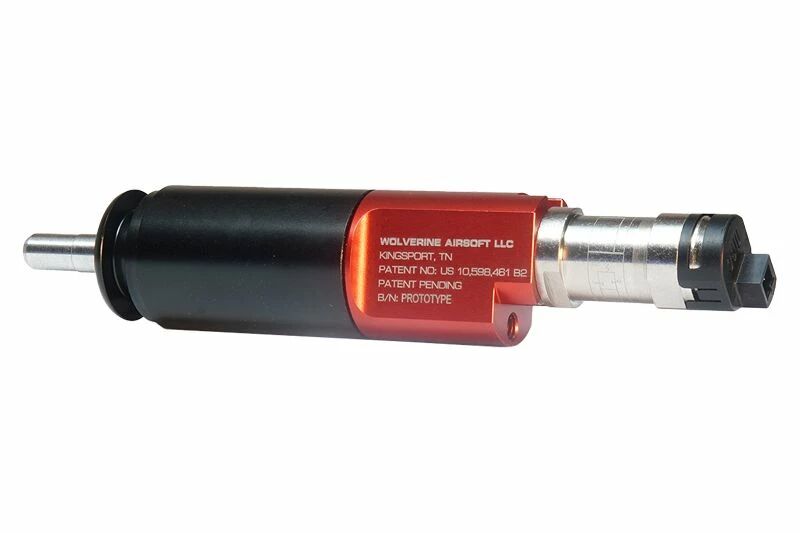

The HPA INFERNO XTS V2 kit is an HPA conversion system designed by Wolverine Airsoft for M4-type AEG replicas with a V2 gearbox. It replaces the internal mechanical assembly with a solenoid-driven direct-fire system, powered by compressed air and controlled by the integrated BLINC electronics. This kit is designed for players who want a reliable HPA conversion that is precisely adjustable and controllable via a mobile app.

A Design Built for Reliability

The INFERNO XTS V2 succeeds the INFERNO Gen 2 and introduces two major structural improvements. The completely redesigned nozzle is made of stainless steel for increased wear resistance. The deflector, made from a single piece of Delrin, ensures stable geometry over time. These two components work in tandem with the Extended Stroke feature, which improves sealing at the hop-up. The system is fully disassemblable, making maintenance easy without specialized tools. An integrated filter line protects the solenoid from contaminants.

Precise adjustments, from flow rate to rate of fire

The accepted input pressure ranges from 60 to 160 PSI, with adjustable power from 1 to 3 joules and an adjustable rate of fire from 5 to 35 BBs per second. For fields requiring low power, there are three levels of flow restrictors (not included), allowing the kit to be adapted without modifying the main air line. Power is supplied via a JST connector, compatible with 6- to 8-V batteries.

BLINC Control: Bluetooth Adjustment and Onboard Timing Tracking

The BLINC electronics, integrated into the kit, connect the replica to a mobile app via Bluetooth. From the app, the player can access rate-of-fire and power settings, view real-time chronograph data, and activate automatic calibration to adjust the system based on available air pressure. The INFERNO XTS V2 is compatible with all Wolverine Airsoft electronics. However, it is not compatible with the QUAKE MTW recoil stock.

• Which replicas are compatible with the HPA INFERNO XTS V2 kit for M4 AEG Wolverine Airsoft?

  This kit is specifically designed for M4-type replicas equipped with a V2 gearbox. It provides a complete conversion solution to upgrade your internal system.

• How does the system adjustment work via BLINC technology?

  The system integrates BLINC electronics, allowing you to configure your replica directly from a mobile app. This interface enables precise adjustment of the rate of fire, chronograph tracking, and automated firing parameters.

• What are the advantages of the Extended Stroke design on this model?

  The Extended Stroke technology significantly improves the seal with the hop-up unit. This design also ensures more consistent BB feeding during gameplay.

• What materials make up the key components of the INFERNO XTS V2 kit?

  Wolverine Airsoft has integrated a stainless steel nozzle for increased durability along with a one-piece Delrin deflector. These components ensure smooth and robust operation for intensive use.

• Is it possible to use this kit with the QUAKE MTW recoil stock?

  No, the HPA INFERNO XTS V2 kit for M4 AEG Wolverine Airsoft is not compatible with the QUAKE MTW recoil stock. It is necessary to check your replica's configuration before any installation.

• What is the adjustment range for rate of fire and pressure?

  This system accepts an input pressure between 60 and 160 PSI to adjust the power output. You can also configure the rate of fire between 5 and 35 BBs per second according to your tactical needs.

• How can low power outputs be managed with this HPA system?

  The kit allows the installation of optional flow restrictors, available in three levels. These components are recommended for achieving power outputs suited to the constraints of certain gameplay environments.

1 x INFERNO XTS V2 HPA Kit for M4 AEG Wolverine Airsoft

• HPA accessories
• Brand Wolverine Airsoft
• Model INFERNO XTS V2
• Version V2
• Compatibility M4 AEG replicas Gearbox V2 / Wolverine electronics
• FCU BLINC
• FCU battery JST 6 to 8 V
• FCU voltage 6 to 8 V
• Electronics BLINC Bluetooth
• Composition Stainless steel nozzle / Delrin deflector
• Power supply HPA
• Shooting modes Solenoid firing
• Firing rate 5 to 35 BBs per second
• Inlet pressure 60 to 160 PSI
