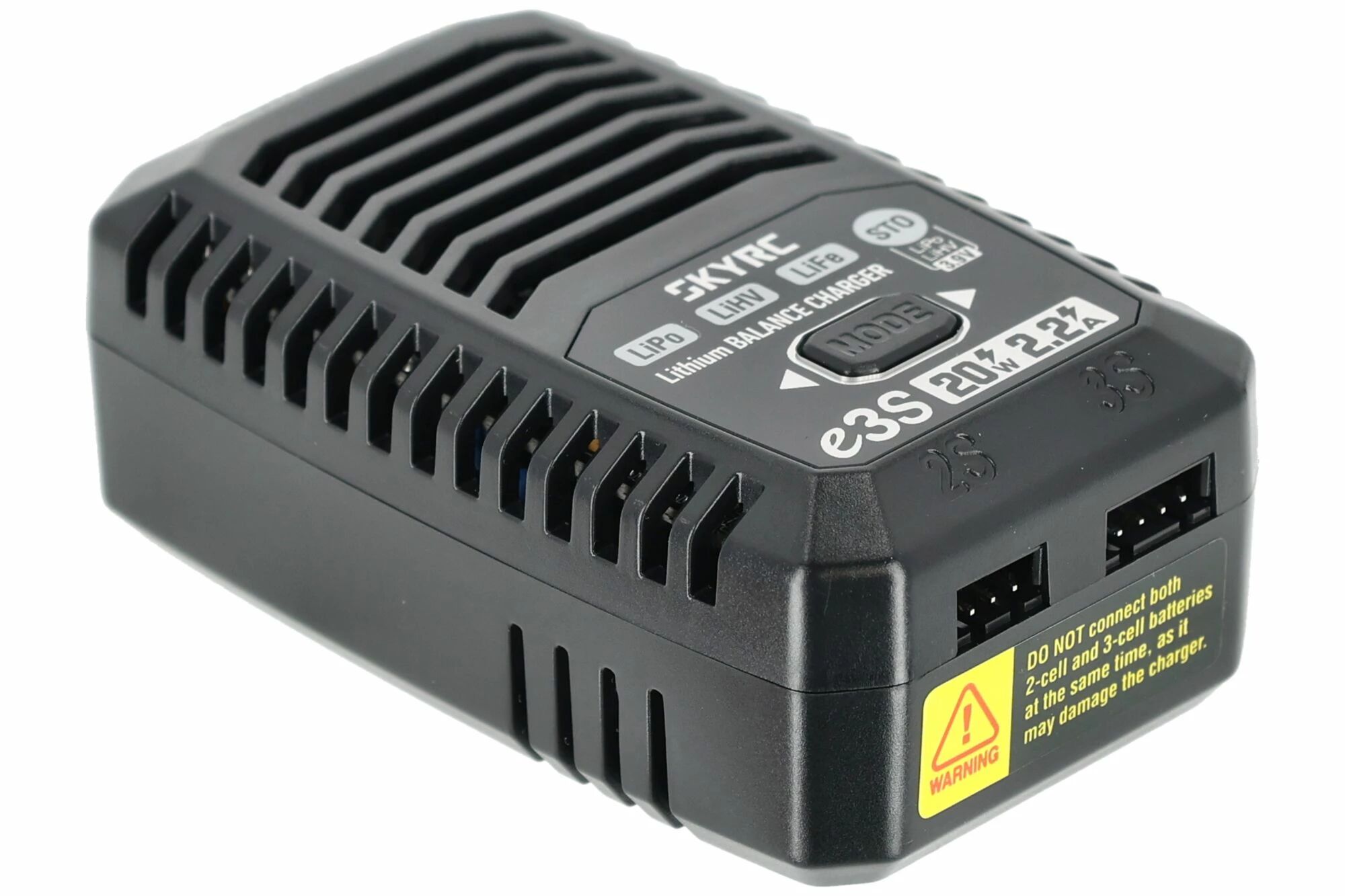

LiPo LiHV LiFe 2-3S 20W e3s AC Charger SkyRC

• Which batteries are compatible with the LiPo 7.4v-11.1v 20W e3s AC Charger SkyRC?

  The SkyRC LiPo 7.4v-11.1v 20W e3s AC Charger is designed to charge LiPo / LiHV / LiFe batteries.

• What battery formats can the SkyRC LiPo 7.4v-11.1v 20W e3s AC Charger charge?

  The SkyRC LiPo 7.4v-11.1v 20W e3s AC Charger supports 2S and 3S batteries with a dedicated balancing socket.

• What charging power and current does the SkyRC 7.4v-11.1v 20W e3s AC Charger deliver?

  The SkyRC LiPo 7.4v-11.1v 20W e3s AC Charger delivers 20W (±2W) charging power, with non-adjustable current: 2.2A in 2S and 1.6A in 3S.

• Does the SkyRC LiPo 7.4v-11.1v 20W e3s AC Charger have a trickle charge mode?

  Yes, the SkyRC LiPo 7.4v-11.1v 20W e3s AC Charger features a "storage" mode for LiPo/LiHV.

• How do I start charging or storage mode on the SkyRC 7.4v-11.1v 20W e3s AC Charger?

  After connecting the battery to the LiPo 7.4v-11.1v 20W e3s AC Charger SkyRC, hold down the "Mode" button for more than 3 seconds to start charging or storage.

• How do I stop / interrupt charging / battery maintenance with the LiPo 7.4v-11.1v 20W e3s AC Charger SkyRC?

  To stop / interrupt charging / battery maintenance with the LiPo 7.4v-11.1v 20W e3s AC Charger SkyRC, simply disconnect the balancing plug.

• what do the status LEDs on the LiPo 7.4v-11.1v 20W e3s AC Charger SkyRC mean?

  Alternating red + green = Standby
  Flashing green = Charging
  Steady green = Charging complete
  Flashing yellow = Storage in progress
  Steady yellow = Storage complete

• What does an anomaly / abnormal voltage mean with the SkyRC e3s AC Charger LiPo 7.4v-11.1v 20W?

  If an abnormal voltage is detected, the 4 LEDs flash as described, with the following thresholds:
  LiPo: > 4.35V or < 2.5V
  LiHV: > 4.50V or < 2.5V
  LiFe: > 3.8V or < 2.5V

• Can I connect a 2S and a 3S at the same time to the e3s AC Charger SkyRC 7.4v-11.1v 20W LiPo charger?

  Unfortunately, it is explicitly forbidden to connect two batteries to be charged at the same time to the LiPo 7.4v-11.1v 20W e3s AC Charger SkyRC, as this could damage the charger and/or the batteries being charged.

• What are the main safety precautions to be taken with the LiPo 7.4v-11.1v 20W e3s AC Charger SkyRC?

  Never leave the charger unattended, use a safe, ventilated area and do not charge damaged batteries are the main precautions to take with this LiPo 7.4v-11.1v 20W e3s AC Charger SkyRC.

• What is the operating temperature range of the LiPo 7.4v-11.1v 20W e3s AC Charger SkyRC?

  When using the LiPo charger 7.4v-11.1v 20W e3s AC Charger SkyRC, the recommended operating range is between 0°C and 40°C .

1 x Charger LiPo 7.4v-11.1v 20W e3s AC Charger SkyRC
1 x Mains power cable

• Battery charger
• Compatible batteries Batterie LiPo 7.4v-11.1v
• Supply voltage 100~240V AC 50/60Hz
• Load current 2 S : 2.20A ± 10% | 3 S : 1.60A ± 10%
• Power 20 W ± 2 W
• LED indicator Yes
• Connections Balancing socket
• Brand SkyRC
