Mosfet DTU V3 2.0 Bluetooth version for Gearbox V3 T238

The T238 Mosfet DTU V3 Bluetooth V2.0, advanced wireless fire control for V3 gearboxes

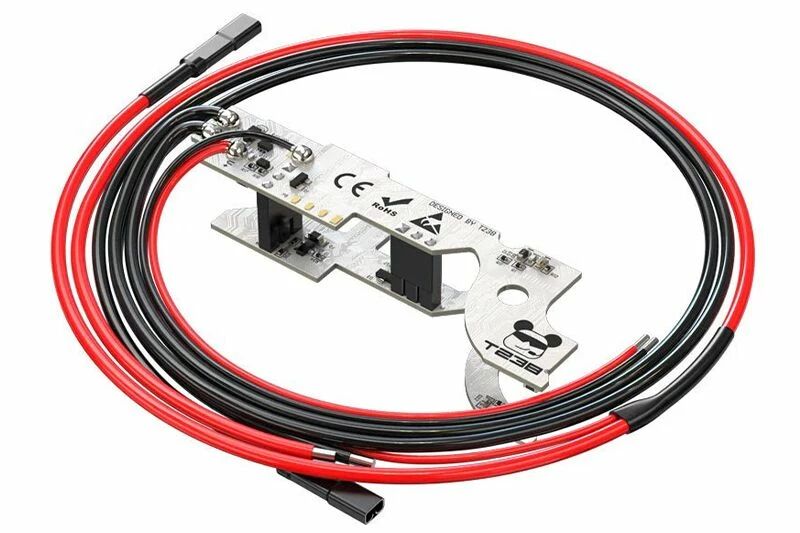

T238's Mosfet DTU V3 Bluetooth V2.0 is an electronic fire control unit designed for installation in V3 gearbox-equipped airsoft replicas. It is designed for players and technicians wishing to fine-tune their firing modes, protect their electronics and gain in reactivity, without having to repeatedly manipulate the replica. Its key asset: Bluetooth connectivity, enabling all functions to be set directly from a smartphone.

Electronic architecture designed for precision and durability

The DTU V3 Bluetooth V2.0 is based on a high-speed processor combined with two high-power mosfet chips, sized to absorb the current peaks inherent in rapid firing cycles. The unit incorporates eight optical sensors that detect the mechanical cycle without physical contact, replacing traditional mechanical switches. This approach reduces wear on switch-related parts and improves the accuracy of piston position detection. Voltage tolerance reaches 14.8V, making it compatible with high-capacity LiPo batteries commonly used in competition or intensive gaming.

Bluetooth programming: configure firing modes without opening the replica

Bluetooth connectivity is the element that clearly distinguishes this mosfet from its wired or push-button equivalents. Via a dedicated mobile app, users can access all firing settings without dismantling the replica. Three independently addressable firing selector positions: SAFE, SEMI and AUTO. Each can be assigned a specific firing mode, chosen from semi-automatic, double stroke (binary, i.e. one shot on trigger and one shot on trigger release), or burst. The SAFE and SEMI positions accept bursts of 3 to 6 shots. The AUTO position can be configured as full-auto, or in bursts of 3, 6 or 9 shots. This level of granularity makes it possible to adapt the replica's behavior to the game profile or rules of the field, without tools or disassembly.

Gearbox V3 compatibility and installation requirements

This mosfet is designed specifically for V3 gearboxes, used in particular in AK, G36 or Tavor replicas in airsoft configuration, as well as in certain Gel Ball Blasters equipped with the same mechanical architecture. T238 offers a separate version for V2 gearboxes: the two ranges are not interchangeable. Installation requires skills in soldering and electrical wiring. A qualified airsoft technician is recommended. Once installed, set-up is performed entirely from the smartphone, making subsequent adjustments accessible to any user, whatever their technical level.

• Which replicas is the DTU V3 Bluetooth V2.0 T238 Mosfet compatible with?

  This mosfet is designed exclusively for replicas equipped with a V3 gearbox, whether airsoft models or Gel Ball Blasters. It replaces the original mechanical contactors to modernize your replica's electronic management.

• How is this module programmed?

  Programming is carried out entirely wirelessly via a smartphone application, thanks to integrated Bluetooth connectivity. This technology enables you to adjust your settings instantly in the field, without having to dismantle your replica.

• What firing mode options are available?

  This mosfet offers full customization of selector positions, including Semi, Double stroke (binary) and programmable burst modes from 3 to 9 shots. Even the SAFE position can be configured to offer specific shooting modes such as Semi or Double stroke.

• Which batteries can be used with the Mosfet DTU V3 Bluetooth V2.0 T238?

  This electronic device supports a wide range of voltages and accepts batteries up to 14.8V. Its two high-power chips enable it to handle demanding configurations while protecting the electrical circuit.

• What is the advantage of the optical detection system?

  The system uses 8 optical sensors to monitor cycles and trigger position instead of conventional physical switches. This technology eliminates mechanical friction, eliminates the risk of arcing and radically increases fingertip responsiveness.

• What's in the T238 box?

  The kit includes the Mosfet DTU V3 Bluetooth V2.0, an instruction manual, a warranty card and a brand badge. For installation, a bag of small technical accessories and an insulating sticker are also supplied.

• Does the installation require any internal modifications?

  Installation of this mosfet requires specific soldering and wiring operations inside the gearbox. Because of the precision required for the optical sensors, installation by a specialist workshop technician is recommended.

1 x Mosfet DTU V3 Bluetooth V2.0 T238
1 x Manual
1 x Warranty card
1 x Badge
1 x Bag of small accessories
1 x Insulating sticker

• Mosfet
• Model DTU V2 EXP V2.0
• Special features 8 Optical Sensors
• Compatibility Gearbox V2
• Programming T238 application
• Application T238
• Connectivity Bluetooth
• Brand T238
